SN Series Bearing Housing Factory

Product types

Housing No.	Dimensions (mm)															Weight (kg)	Bearing No.	Locating Ring Number QTY
Housing No.	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1 h13	f2	Weight (kg)	Bearing No.	Locating Ring Number QTY

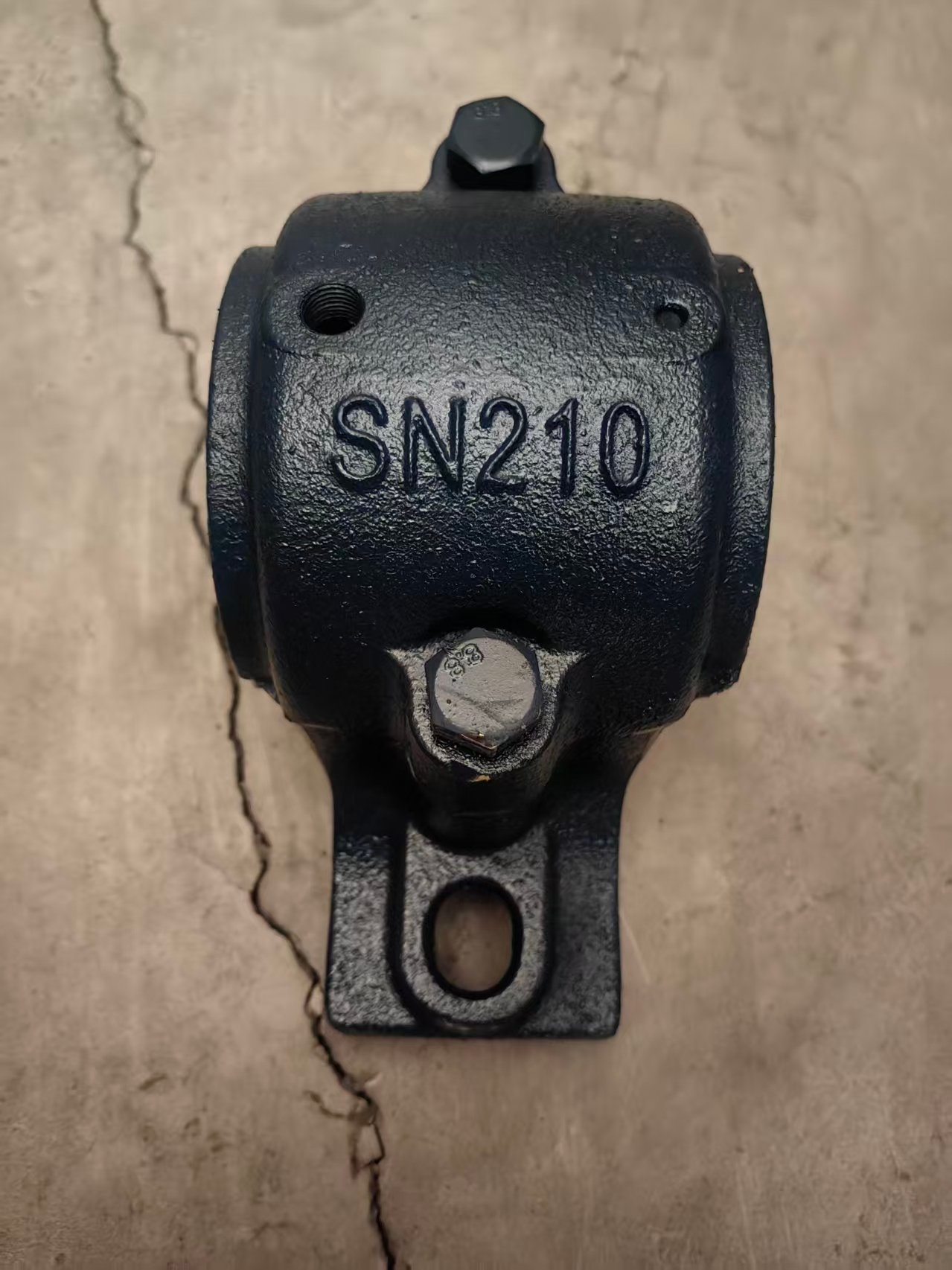

SN205	52	165	46	22	25	40	67	75	130	15	20	31.5	43	4	5.4	1.05	1205 / 22205 2205	SR52×5 (2) SR52×7 (1)
SN206	62	185	52	22	30	50	77	90	150	15	20	36.5	48	4	5.5	1.4	1206 / 22206 2206	SR62×7 (2) SR62×10 (1)
SN207	72	185	52	22	33	50	82	95	150	15	20	46.5	58	4	5.4	1.7	1207 / 22207 2207	SR72×8 (2) SR72×10 (1)
SN208	80	205	60	25	33	60	85	110	170	15	20	51.5	67	5	6.9	2.15	1208 / 22208 2208	SR80×7.5 (2) SR80×10 (1)
SN209	85	205	60	25	31	60	85	112	170	15	20	56.5	72	5	6.9	2.3	1209 / 22209 2209	SR85×6 (2) SR85×8 (1)
SN210	90	205	60	25	33	60	90	115	170	15	20	62	77	5	6.8	2.45	1210 / 22210 2210	SR90×6.5(2) SR90×10 (1)
SN211	100	255	70	28	33	70	95	130	210	18	23	67	82	5	6.8	3.35	1211 / 22211 2211	SR100×6(2) SR100×8 (1)
SN212	110	255	70	30	38	70	105	135	210	18	23	72	89	6	8.1	4.0	1212 / 22212 2212	SR110×8(2) SR110×10 (1)
SN213	120	275	80	30	43	80	110	150	230	18	23	77	94	6	8.1	4.25	1213 / 22213 2213	SR120×10(2) SR120×12 (1)
SN214	125	275	80	30	44	80	115	155	230	18	23	82	99	6	8.1	5.0	1214 / 22214 2214	SR125×10(2) SR125×13 (1)
SN215	130	280	80	30	41	80	115	155	230	18	23	87	104	6	8.1	5.05	1215 / 22215 2215	SR130×8 (2) SR130×10 (1)
SN216	140	315	90	32	43	95	120	175	260	22	27	92	111	7	9.3	6.1	1216 / 22216 2216	SR140×8.5 (2) SR140×10 (1)
SN217	150	320	90	32	46	95	125	185	260	22	27	97	116	8	10.8	7.55	1217 / 22217 2217	SR150×9 (2) SR150×10 (1)
SN218	160	345	100	35	62.4	100	145	195	290	22	27	102	125	8	10.7	8.55	1218 / 2218 22218/ 23218	SR160×16.2 (2) SR160×11.2 (1) SR160×10 (1)
SN219	170	345	100	35	53	112	140	210	290	22	27	113	135	8	10.7	12.5	1219 / 22219 2219	SR170×10.5 (2) SR170×10 (1)
SN220	180	380	110	40	70.3	112	160	218	320	26	32	118	140	9	12.2	11.4	2220 / 22220 23220	SR180×12.1 (2) SR180×10 (1)
SN222	200	410	120	45	80	125	175	240	350	26	32	128	154	9	12.2	14.3	22222 / 23222	SR200×13.5 (2) SR200×10 (1)
SN224	215	410	120	45	86	140	185	270	350	26	32	138	164	10	13.7	17.05	22224 / 23224	SR215×14 (2) SR215×10 (1)
SN226	230	445	130	50	90	150	190	290	380	28	36	148	174	10	13.7	20.4	22226 / 23226	SR230×13 (2) SR230×10 (1)
SN228	250	500	150	50	98	150	205	305	420	33	42	158	184	10	13.7	27.35	22228 / 23228	SR250×15 (2) SR250×10 (1)
SN230	270	530	160	60	106	160	220	325	450	33	42	168	194	10	13.7	28.5	22230 / 23230	SR270×16.5 (2) SR270×10 (1)
SN232	290	550	160	60	114	170	235	345	470	33	42	178	204	10	13.7	36.5	22232 / 23232	SR290×17 (2) SR290×10 (1)

"Models are listed up to SN215. For detailed specifications of other models, please contact us via WhatsApp for an immediate response.
" "Please note: Actual weight may deviate from the drawing specifications. Final weight is subject to the physical product."

Housing No.	Dimensions (mm)															Wt. (kg)	Bearing No.	Locating Ring Number & QTY
Housing No.	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1	f2 h13	Wt. (kg)	Bearing No.	Locating Ring Number & QTY

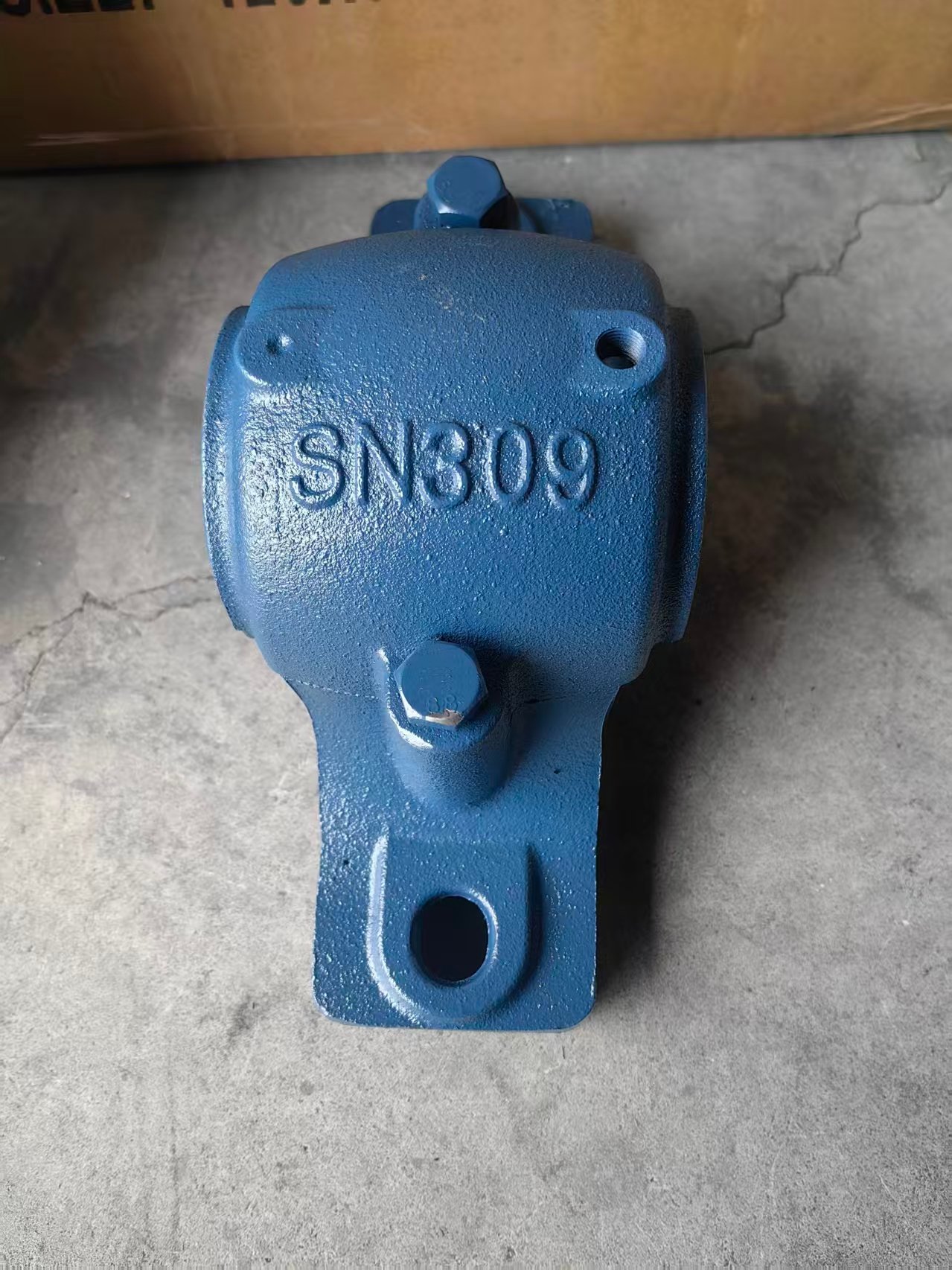

SN306	72	185	52	22	37	50	82	95	150	15	20	36.5	48	4	5.4	1.35	1306 2306	SR72×9 (2) SR72×10 (1)
SN307	80	205	60	25	41	60	90	110	170	15	20	46.5	58	4	5.4	1.9	1307 2307	SR80×9 (2) SR80×10 (1)
SN308	90	205	60	25	43	60	95	115	170	15	20	51.5	67	4	5.4	2.55	1308 / 21308 2308 / 22308	SR90×10 (2) SR90×10 (1)
SN309	100	255	70	28	46	70	105	130	210	18	23	56.5	72	5	6.9	3.25	1309 / 21309 2309 / 22309	SR100×10.5 (2) SR100×10 (1)
SN310	110	255	70	30	50	70	115	135	210	18	23	62	77	5	6.9	4.0	1310 / 21310 2310 / 22310	SR110×11.5 (2) SR110×10 (1)
SN311	120	275	80	30	53	80	120	150	230	18	23	67	82	5	6.8	4.7	1311 / 21311 2311 / 22311	SR120×12 (2) SR120×10 (1)
SN312	130	280	80	30	56	80	125	155	230	18	23	72	89	5	6.8	5.2	1312 / 21312 2312 / 22312	SR130×12.5 (2) SR130×10 (1)
SN313	140	315	90	32	58	95	130	175	260	22	27	77	94	6	8.1	6.95	1313 / 21313 2313 / 22313	SR140×12.5 (2) SR140×10 (1)
SN315	160	345	100	35	65	100	140	195	280	22	27	87	104	6	8.1	8.45	1315 / 21315 2315 / 22315	SR160×14 (2) SR160×10 (1)
SN316	170	345	100	35	68	112	145	212	290	22	27	92	111	6	8.1	9.6	1316 / 21316 2316 / 22316	SR170×14.5 (2) SR170×10 (1)
SN317	180	380	110	40	70	112	155	218	320	26	32	97	116	7	9.3	11.4	1317 / 21317 2317 / 22317	SR180×14.5 (2) SR180×10 (1)
SN318	190	400	110	33	74	112	160	230	320	26	35	102	125	8	10.8	11.65	1318 / 22318 2318	SR190×15.3 (2) SR190×9.5 (1)
SN319	200	420	120	36	77	125	170	245	350	26	35	113	135	8	10.7	16.4	1319 / 22319 2319	SR200×15.8 (2) SR200×9.5 (1)
SN320	215	420	120	38	83	140	175	280	350	26	35	118	140	8	10.7	16.7	1320 / 22320 2320	SR215×17.8 (2) SR215×9.5 (1)
SN322	240	460	130	40	90	150	190	300	390	28	38	128	154	9	12.2	23.4	1322 / 22322 2322	SR240×19.8 (2) SR240×9.5 (1)
SN324	260	540	160	50	96	160	205	325	450	33	42	138	164	9	12.2	32.4	22324	SR260×10 (1)
SN326	280	560	160	50	103	170	215	350	470	33	42	153	183	10	13.7	41.35	22326	SR280×10 (1)
SN328	300	630	170	55	112	180	235	375	520	35	45	163	193	10	13.7	47	22328	SR300×10 (1)
SN330	320	680	180	55	118	190	245	395	560	35	45	173	203	10	13.7	57	22330	SR320×10 (1)
SN332	340	340	190	60	124	200	255	415	580	42	52	183	213	10	13.7	71	22332	SR340×10 (1)

“The table above lists common models. For full catalog or 2D/3D drawings, please contact us via WhatsApp.”
"Please note: Actual weight may deviate from the drawing specifications. Final weight is subject to the physical product."

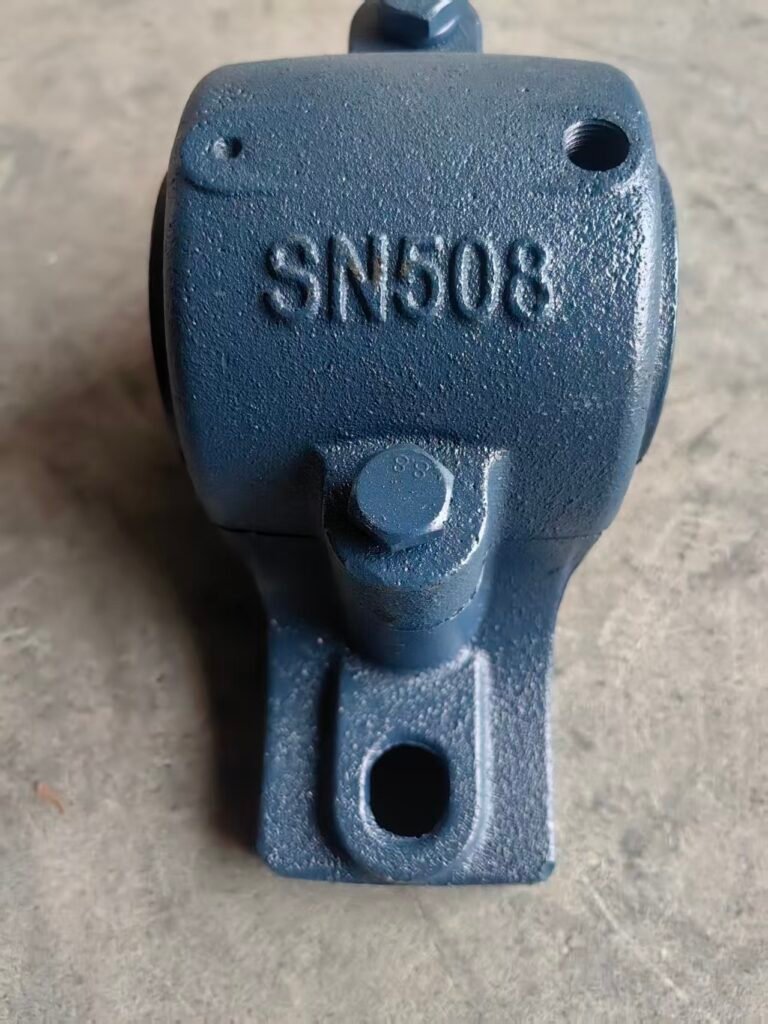

Housing No.	Dimensions (mm)															Wt. (kg)	Bearing No.	Adapter Sleeve	Locating Ring Number & QTY
Housing No.	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1	f2 h13	Wt. (kg)	Bearing No.	Adapter Sleeve	Locating Ring Number & QTY
SN507	72	185	52	22	33	50	82	95	150	15	20	36.5	43	4	5.4	1.75	1207K / 22207K 2207K	H207 / HE707 H307 / HE307	SR72×8 (2) SR72×10 (1)
SN508	80	205	60	25	33	60	85	110	170	15	20	41.5	48	4	5.4	2.25	1208K / 22208K 2208K	H208 / HE208 H309 / HE308	SR80×7.5 (2) SR80×10 (1)
SN509	85	205	60	25	33	60	85	112	170	15	20	46.5	53	4	5.4	2.4	1209K / 22209K 2209K	H209 / HE209 H309 / HE309	SR85×6.5 (2) SR85×10 (1)
SN510	90	205	60	25	33	60	90	115	170	15	20	51.5	58	4	5.4	2.5	1210K / 22210K 2210K	H210 / HE210 H310 / HE310	SR90×6 (2) SR90×10 (1)
SN511	100	255	70	28	38	70	105	135	210	18	23	56.5	67	5	6.9	3.25	1211K / 22211K 2211K	H211 / HE211 H312 / HE311	SR100×8 (2) SR100×10 (1)
SN512	110	255	70	30	38	70	110	135	210	18	23	62	77	5	6.9	3.7	1212K / 22212K 2212K	H212 / HE212 H312 / HE312	SR110×8 (2) SR110×10 (1)
SN513	120	275	80	30	43	80	115	155	230	18	23	67	82	5	6.8	4.7	1213K / 22213K 2213K	H213 / HE213 H313 / HE313	SR120×10 (2) SR120×12 (1)
SN515	130	280	80	30	41	80	120	155	230	18	23	72	89	5	6.8	5.65	1215K / 22215K 2215K	H215 / HE215 HE315 / HE315	SR130×8.5 (2) SR130×10 (1)
SN516	140	315	90	32	43	95	120	175	260	22	27	77	94	6	8.1	6.9	1216K / 22216K 2216K	H216 / HE216 HE316 / HE316	SR140×8.5 (2) SR140×10 (1)
SN517	150	320	90	32	46	95	125	185	260	22	27	82	99	6	8.1	7.5	1217K / 22217K 2217K	H217 / HE217 HE317 / HE317	SR150×9 (2) SR150×10 (1)
SN518	160	345	100	35	62.4	100	145	195	280	22	27	87	104	6	8.1	8.6	1218K / 22218K 2218K / 23218K	H218 / HE218 HE318 / HE318	SR160×10.5 (2) SR160×10 (1)
SN519	170	345	100	35	53	112	140	210	290	22	27	92	111	6	8.1	11.5	1219K / 22219K 2219K	H219 / HE219 HE319 / HE319	SR170×10 (2) SR170×10 (1)
SN520	180	380	110	40	70.3	112	160	218	320	26	32	97	116	7	9.3	12.5	22220K / 23220K 2220K	H320 / HE320 H2320 / HE2220	SR180×10 (2) SR180×10 (1)
SN522	200	410	120	45	80	125	175	240	350	26	35	102	125	8	10.8	17.0	22222K / 2222K 23222K	H322 / HE322 H2322 / HE2322	SR200×13.5 (2) SR200×10 (1)
SN524	215	410	120	45	86	140	185	270	350	26	35	113	135	8	10.7	17.6	22224K 23224K	H3124 / HE3124 H2324 / HE2324	SR215×14 (2) SR215×10 (1)
SN526	230	445	130	50	90	150	190	290	380	28	38	118	140	8	10.7	20.3	22226K 23226K	H3126 / HE3126 H2326 / HE2226	SR230×13 (2) SR230×10 (1)
SN528	250	500	150	50	96	160	205	305	420	33	42	128	154	9	12.2	28	22228K 23228K	H3128 / HE3128 H2328 / HE2328	SR250×15 (2) SR250×10 (1)
SN530	270	530	150	50	106	170	215	325	450	33	42	138	164	9	12.2	29.45	22230K 23230K	H3130 / HE3130 H2330 / HE2330	SR270×16.5 (2) SR270×10 (1)
SN532	290	550	160	60	114	180	235	345	470	33	42	153	183	10	13.7	37.45	22232K 23232K	H3132 / HE3132 H2332 / HE2332	SR290×17 (2) SR290×10 (1)

All SN500 series housings are supplied with standard felt seals. For high-temperature or dusty environments, special seals are available upon request."
"Please note: Actual weight may deviate from the drawing specifications. Final weight is subject to the physical product."

Add Your Heading Text Here

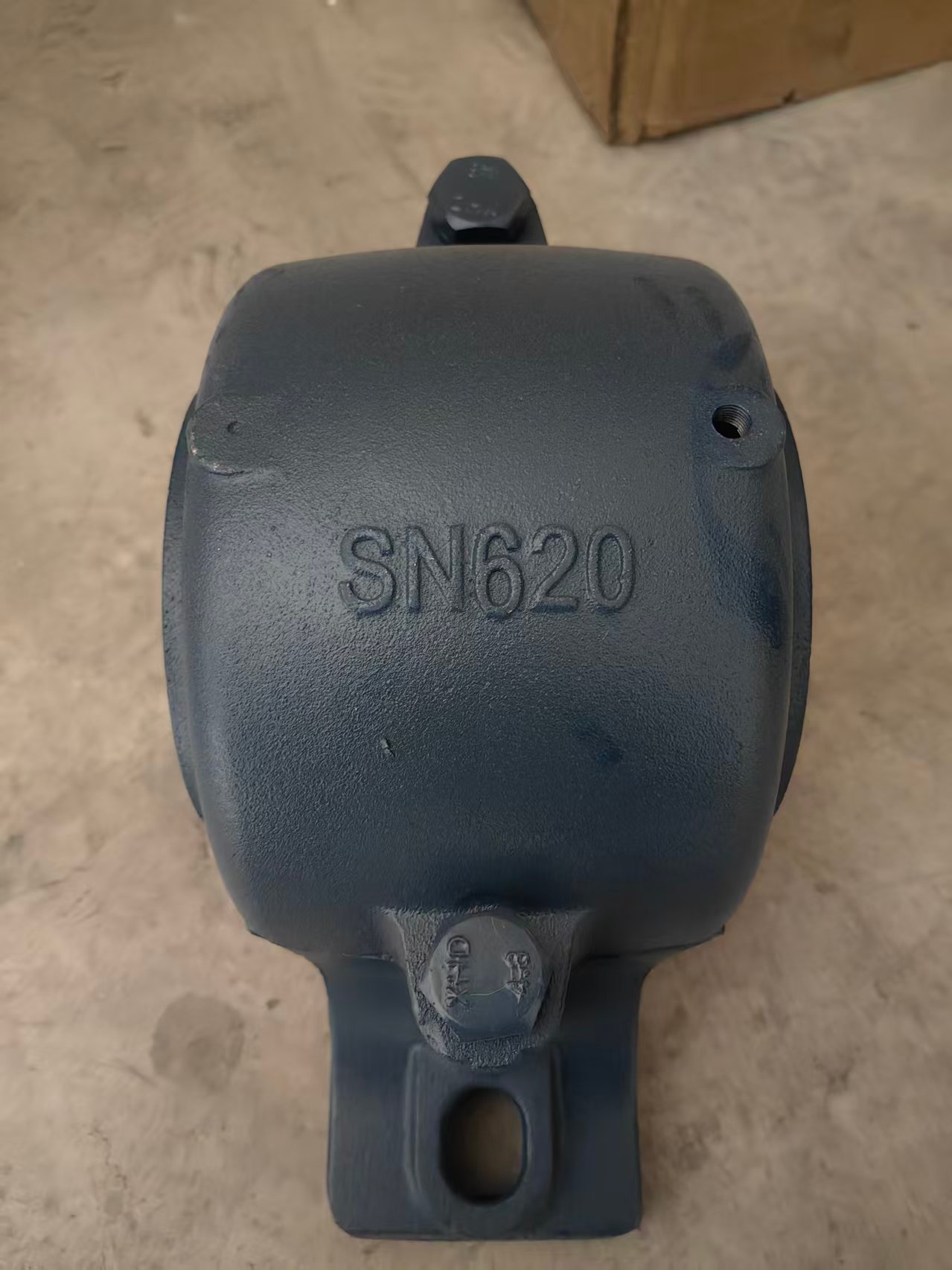

Housing No.	Dimensions (mm)															Wt. (kg)	Bearing No.	Adapter Sleeve	Locating Ring Number & QTY
Housing No.	D H8	a	b	c	g H12	h h12	L	W	m	u	v	d2 h12	d3 h12	f1	f2 h13	Wt. (kg)	Bearing No.	Adapter Sleeve	Locating Ring Number & QTY
SN610	110	255	70	30	50	70	110	136	210	18	23	46.5	58	4	5.4	6.1	1310K / 21310K 2310K / 22310K	H310 / HE310 HE2310	SR110×10 (2) SR110×10 (1)
SN611	120	275	80	30	53	80	115	150	230	18	23	51.5	67	5	6.9	7.9	1311K / 21311K 2311K / 22311K	H311 / HE311 HE2311	SR120×12 (2) SR120×10 (1)
SN612	130	280	80	30	56	80	125	155	230	18	23	56.5	72	5	6.9	8.5	1312K / 21312K 2312K / 22312K	H312 / HE312 HE2312	SR130×12.5 (2) SR130×10 (1)
SN613	140	315	90	32	58	95	130	175	260	22	27	62	77	5	6.8	10.8	1313K / 21313K 2313K / 22313K	H313 / HE313 HE2313	SR140×12.5 (2) SR140×10 (1)
SN615	160	345	100	35	65	100	140	196	290	22	27	67	82	5	6.8	14.6	1315K / 21315K 2315K / 22315K	H315 / HE315 HE2315	SR160×14 (2) SR160×10 (1)
SN616	170	345	100	35	65	100	145	212	290	22	27	72	89	5	6.8	17.1	1316K / 21316K 2316K / 22316K	H316 / HE316 HE2316	SR170×14.5 (2) SR170×10 (1)
SN617	180	380	110	40	70	112	156	218	320	26	27	77	94	6	8.1	18.7	1317K / 21317K 2317K / 22317K	H317 / HE317 HE2317	SR180×14 (2) SR180×10 (1)
SN618	190	400	110	40	74	112	160	230	320	26	27	82	99	6	8.1	24.1	1318K / 22318K 2318K	H318 / HE318 HE2318	SR190×15.5 (2) SR190×10 (1)
SN619	200	420	120	36	77	125	170	245	350	26	26	87	104	6	8.1	25.5	1319K / 22319K 2319K	H319 / HE319 HE2319	SR200×16 (2) SR200×10 (1)
SN620	215	420	120	40	90	140	175	280	350	28	28	92	111	7	9.3	31	1320K / 22320K 2320K	H320 / HE320 HE2320	SR215×18 (2) SR215×10 (1)
SN622	240	460	130	38	83	140	190	300	390	28	38	102	125	8	10.8	41.4	1322K / 22322K 2322K	H322 / HE322 HE2322	SR240×20 (2) SR240×10 (1)
SN624	260	540	160	40	96	160	205	326	450	33	42	113	135	8	10.7	54.6	22324K	H2324 HE2324	SR260×10 (2) SR260×10 (1)
SN626	280	560	160	50	103	170	215	350	470	33	42	118	140	8	10.7	67.2	22326K	H2326 HE2326	SR280×10 (2) SR280×10 (1)
SN628	300	630	170	55	112	180	235	375	520	35	45	128	154	9	12.2	92.6	22328K	H2328 HE2328	SR300×10 (2) SR300×10 (1)
SN630	320	680	180	55	118	190	245	395	560	35	45	138	164	9	12.2	101.5	22330K	H2330 / HE2330	SR320×10 (2) SR320×10 (1)
SN632	340	710	190	60	124	200	255	415	580	42	52	143	173	10	13.7	122.3	22332K	H2332 / HE2332	SR340×10 (1)

"For detailed SN600 series specifications and the full catalog, please contact us via WhatsApp for an immediate response.
Please note: Actual weight may deviate from the drawing specifications. Final weight is subject to the physical product."
