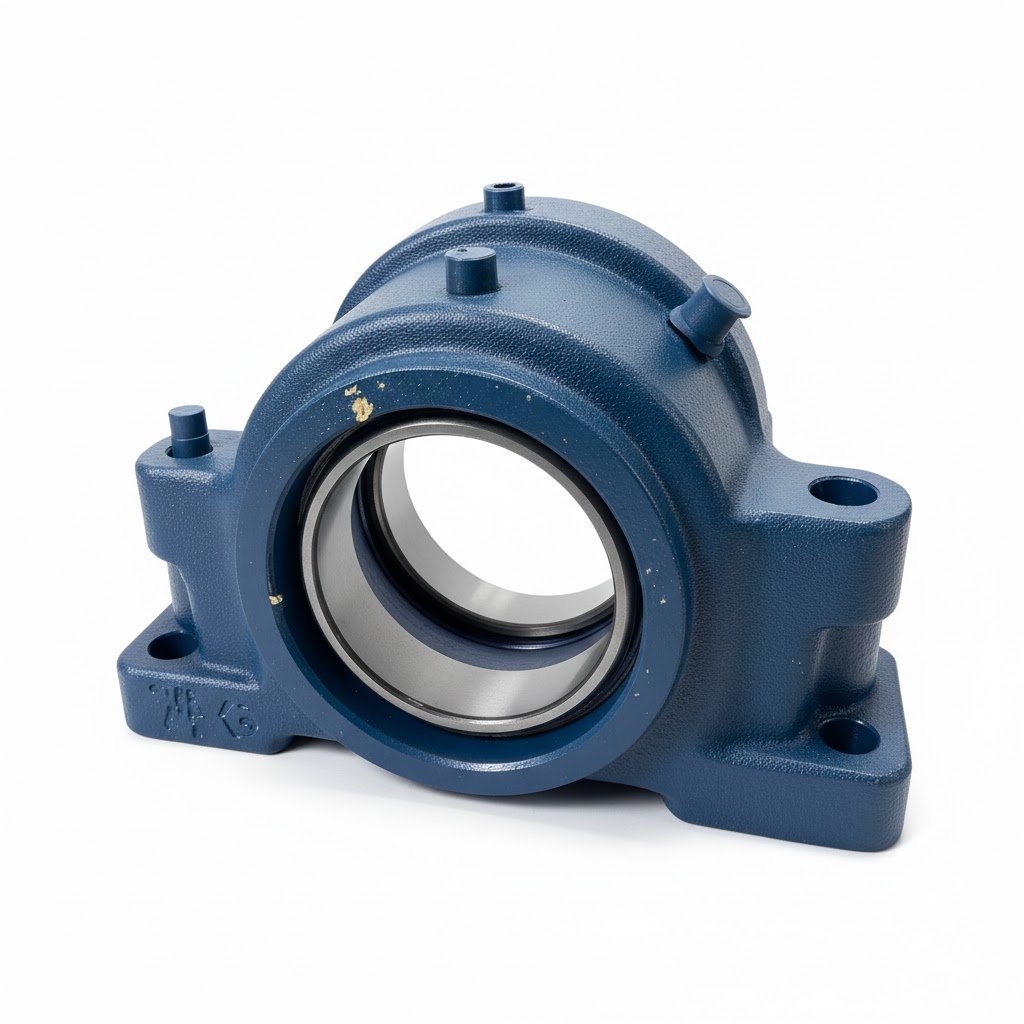

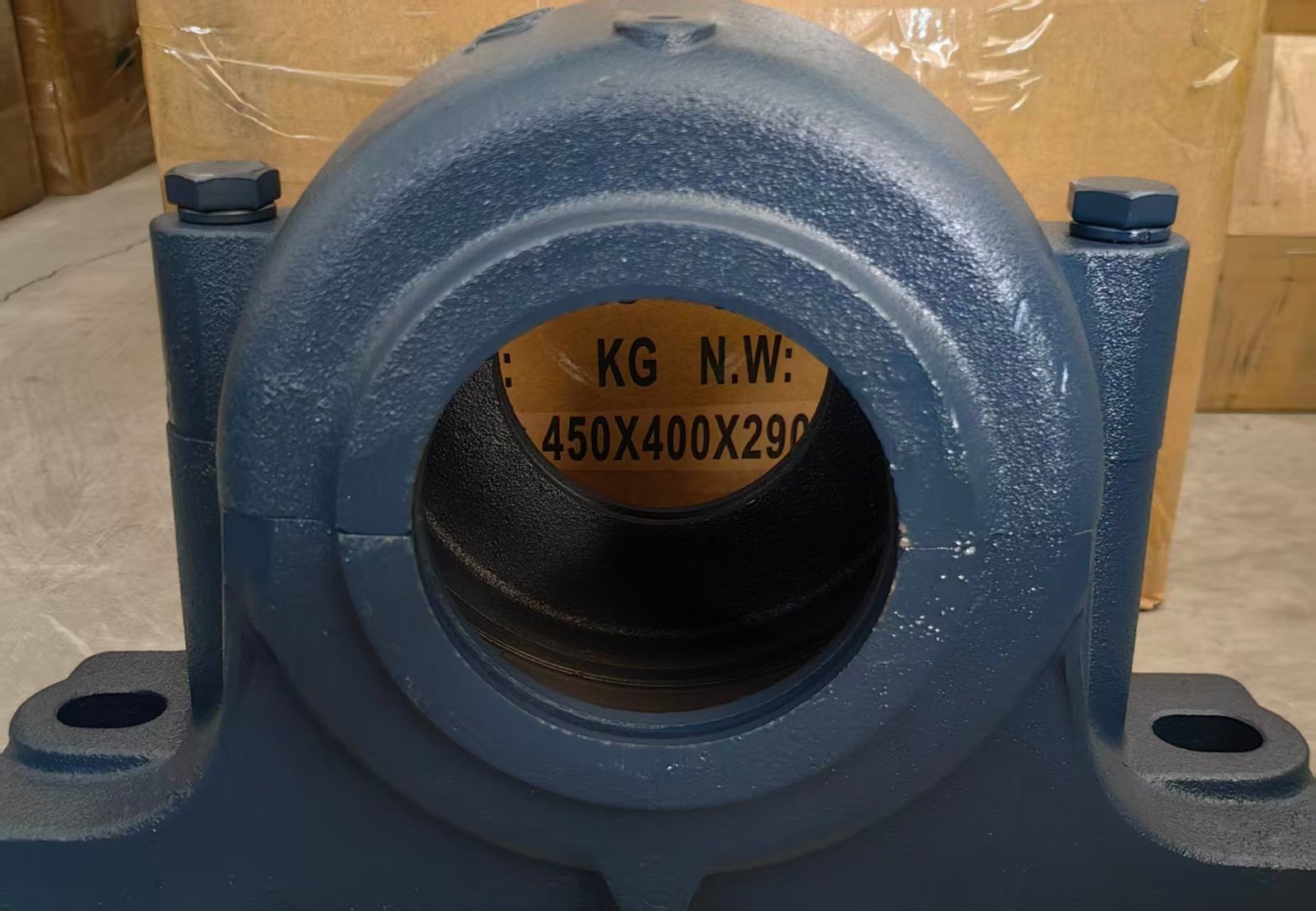

Technical Specifications: Cast Steel Housings
-
Material: Cast Steel (ZG270-500 / GS45)
-

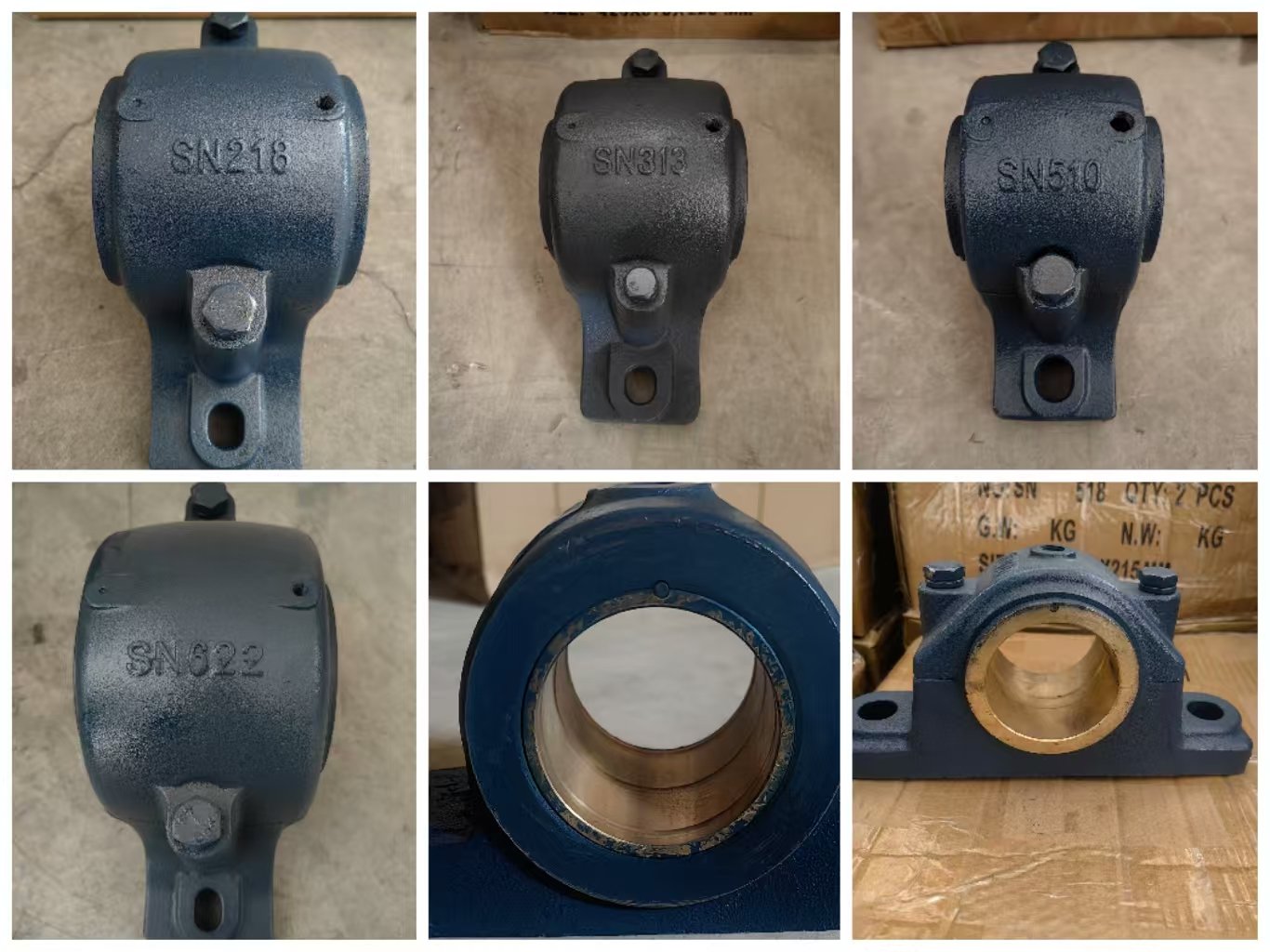

Series: SN200, SN300, SN500, SN600
-
Bearing Type: Spherical Roller / Self-aligning Ball
-
Lubrication: Grease or Oil (Optional)
-
Seals: Felt (TC), Labyrinth (TS), Double-lip (G)
-
Temperature: -40°C to +200°C(Based on seal & lubricant)
HZ2000 Series Bearing Housing Specifications
| Model | Shaft Dia. (d) | Width (W) | Center Height (h) | Base Length (a) | Approx. Weight (kg) |
| HZ020 | 20 | 30 | 30 | 105 | ± 0.6 |
| HZ025 | 25 | 40 | 35 | 125 | ± 0.9 |
| HZ030 | 30 | 50 | 35 | 150 | ± 1.5 |
| HZ035 | 35 | 55 | 42 | 150 | ± 1.7 |
| HZ040 | 40 | 60 | 45 | 160 | ± 1.9 |
| HZ045 | 45 | 70 | 50 | 165 | ± 2.4 |
| HZ050 | 50 | 75 | 50 | 185 | ± 3.6 |
| HZ060 | 60 | 80 | 60 | 225 | ± 3.8 |
| HZ070 | 70 | 100 | 70 | 245 | ± 6.5 |
| HZ080 | 80 | 100 | 80 | 255 | ± 9.0 |
| HZ090 | 90 | 120 | 85 | 285 | ± 10.0 |
| HZ100 | 100 | 120 | 90 | 305 | ± 13.2 |
| HZ110 | 110 | 140 | 95 | 315 | ± 15.5 |
| HZ120 | 120 | 150 | 105 | 370 | ± 21.0 |
| HZ140 | 140 | 170 | 120 | 400 | ± 27.0 |
Disclaimer: Weights are estimated for reference only. Due to the casting process, actual weights may vary. For precise shipping calculations, please contact us for a final measurement.

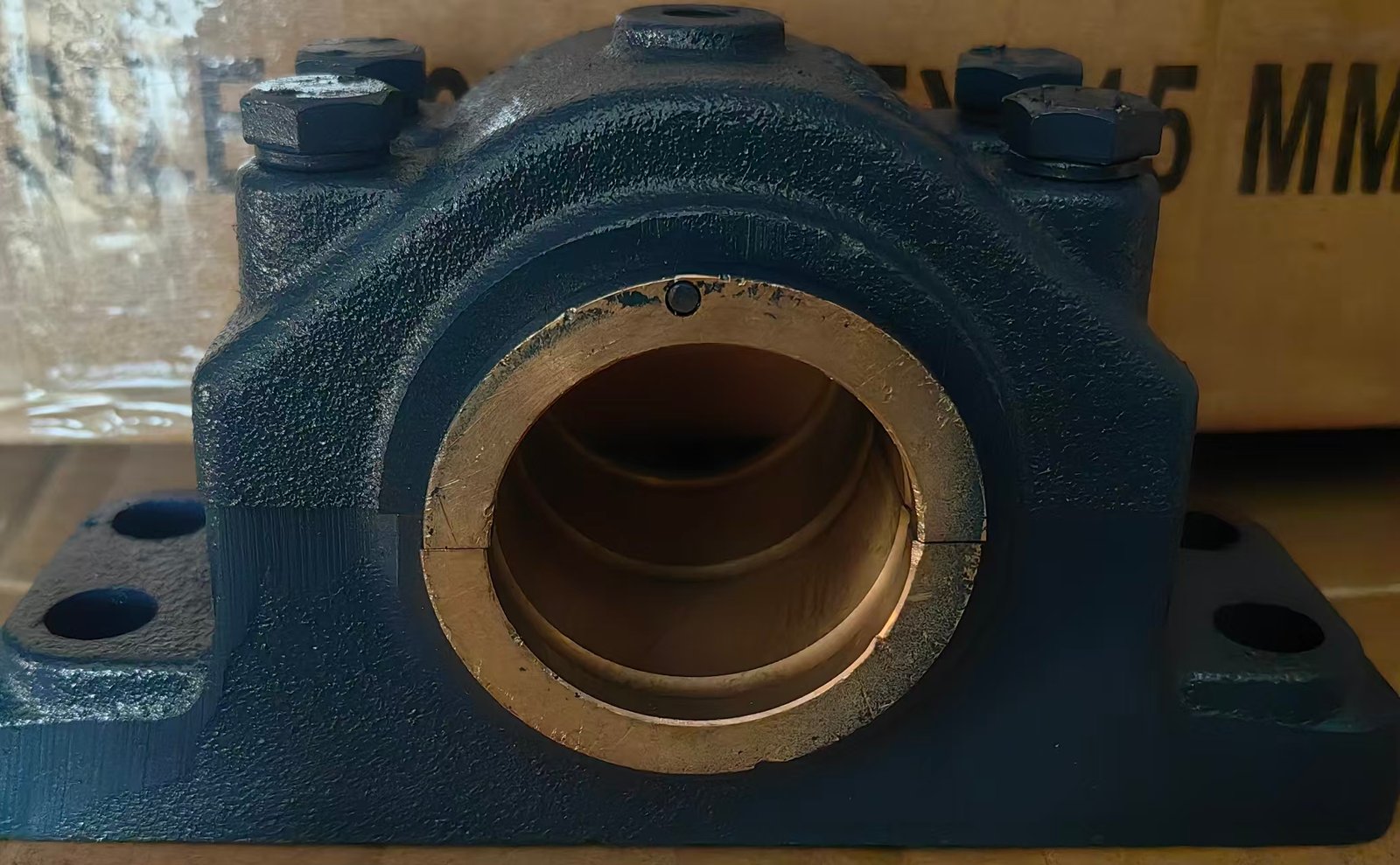

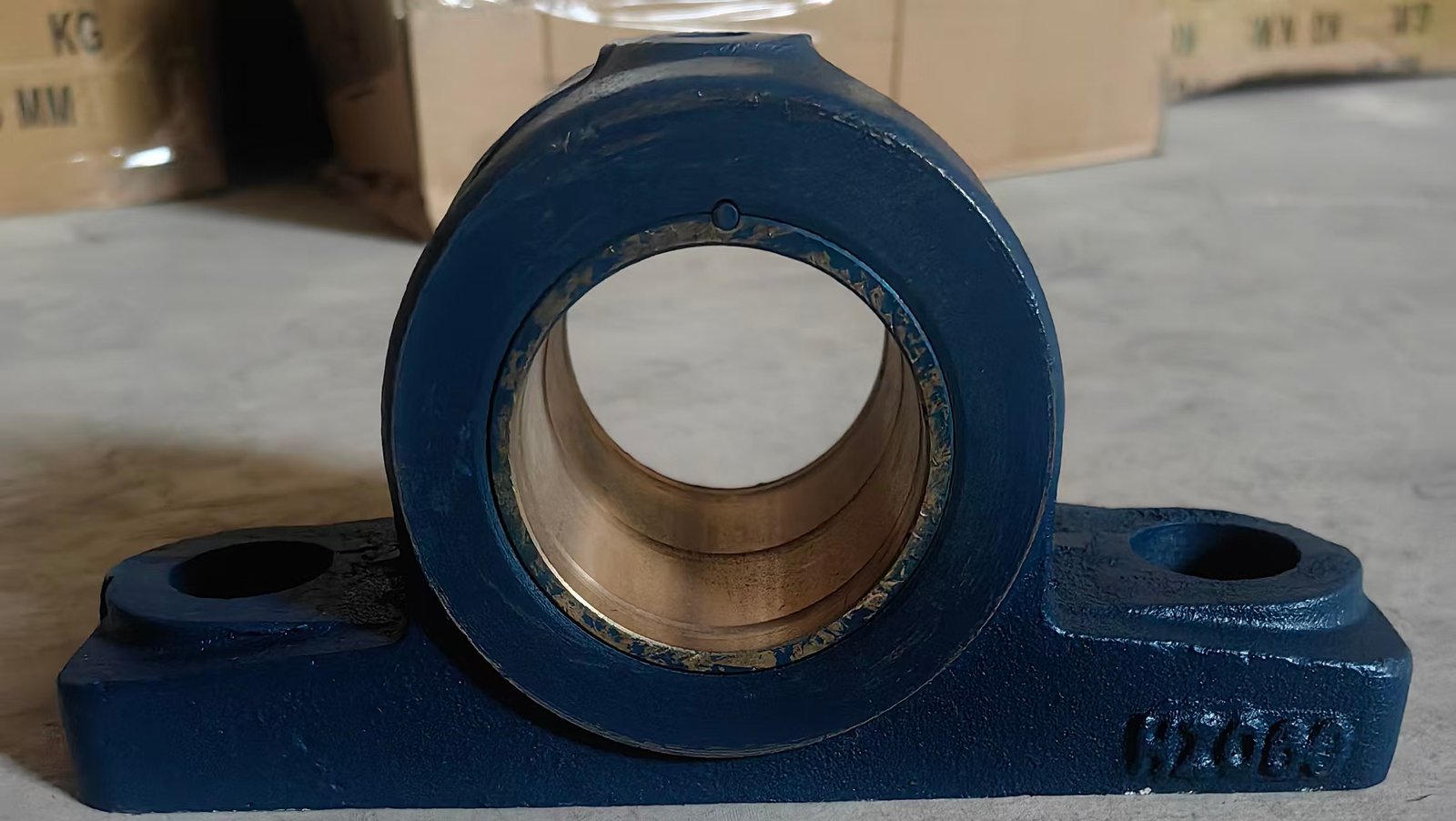

TECHNICAL DATA: H SERIES BRONZE BUSHING JOURNAL BEARINGS
| MODEL | SHAFT DIA. (d) / mm | CENTER HEIGHT (h) / mm | BASE LENGTH (a) / mm | APPROX. WEIGHT (kg) |
| H2030 | 30 | 35 | 140 | ± 0.8 |
| H2035 | 35 | 42 | 165 | ± 1.2 |
| H2040 | 40 | 45 | 170 | ± 1.8 |
| H2045 | 45 | 50 | 175 | ± 2.3 |
| H2050 | 50 | 50 | 200 | ± 2.9 |
| H2060 | 60 | 60 | 240 | ± 4.6 |
| H2070 | 70 | 70 | 260 | ± 7.0 |
| H2080 | 80 | 80 | 290 | ± 10.5 |
| H2090 | 90 | 85 | 300 | ± 12.5 |
| H2100 | 100 | 90 | 340 | ± 17.5 |
| H2110 | 110 | 95 | 350 | ± 19.5 |
| H2120 | 120 | 105 | 370 | ± 25.0 |
| H2140 | 140 | 120 | 390 | ± 33.5 |
| H2160 | 160 | 140 | 410 | ± 45.5 |
