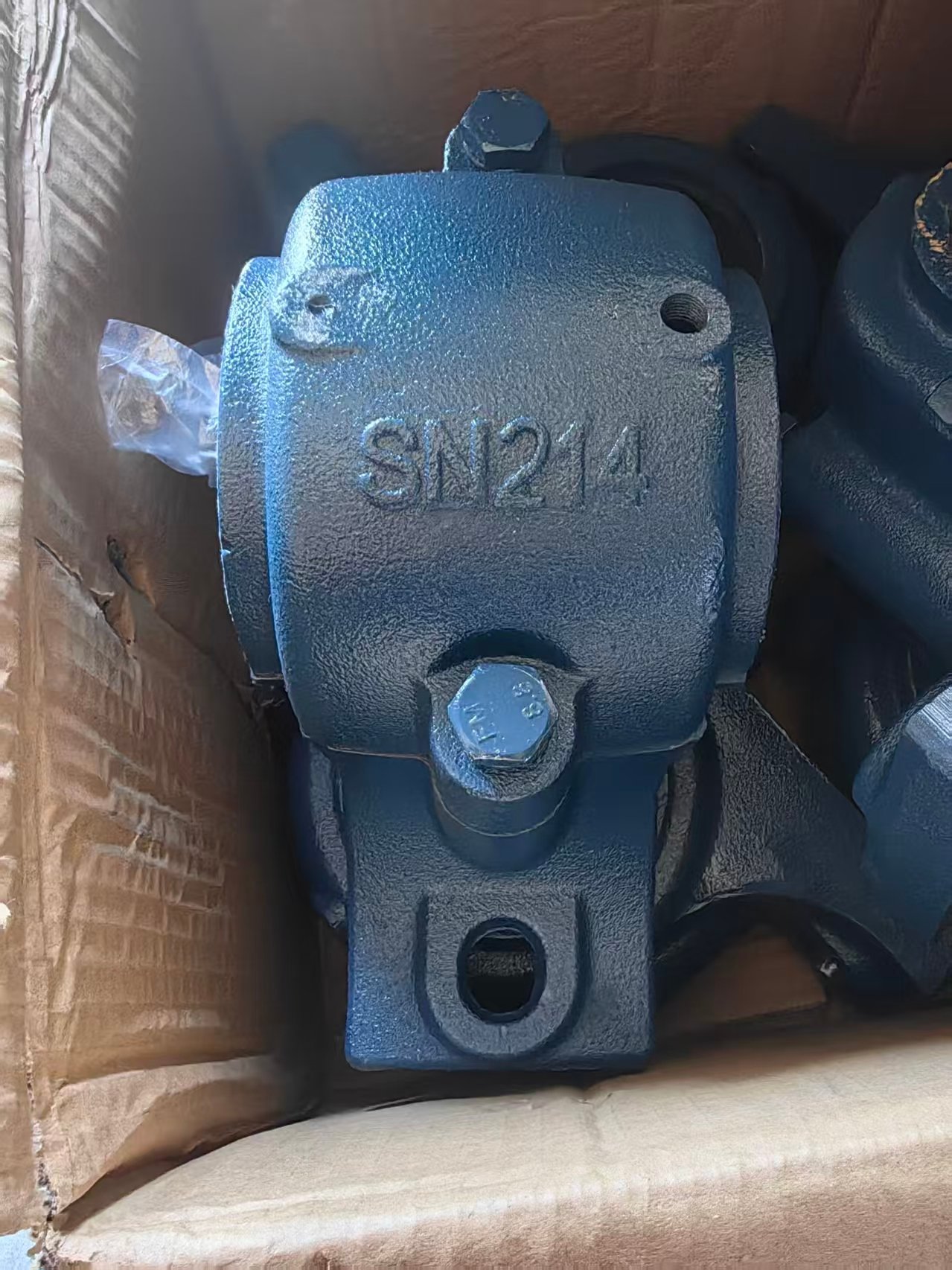

SN214 Plummer Block Bearing Housing
Product Overview
The SN214 Plummer Block Bearing Housing (Split Pillow Block) is designed as a heavy-duty, reliable, and versatile housing solution for spherical roller bearings, self-aligning ball bearings, and barrel roller bearings. Manufactured from high-grade cast iron, the split-body design allows for easy assembly, inspection, and maintenance of pre-assembled shafts.
Whether your customers are looking for fixed or floating bearing arrangements, the SN214 offers optimal sealing protection and robust load distribution to prolong bearing service life in harsh environments.
Industrial Applications
The SN214 housing is widely integrated into power transmission systems and rotating machinery across various heavy industries. Key applications include:
Conveyor Systems & Bulk Material Handling: Ideal for drive pulleys and return pulleys in mining, quarrying, and cement plants.
Fans and Blowers: Used in heavy-duty industrial ventilation and air-handling units.
Agricultural Machinery: Fits large-scale processing equipment, grain elevators, and shredders.
Pulp & Paper Machinery: Applied in drying cylinders, felt rollers, and paper manufacturing lines.
Crushers and Shredders: Built to withstand high radial loads and vibration in recycling and stone crushing plants.
Water Treatment & Pumps: Supports large centrifugal pumps and water processing agitators.
- This SN214 plummer block conforms to standard series
| Parameter (参数) | Symbol (符号) | Value (SN214 数值) |
| Bearing Seat Diameter (轴承外径) | D (H8) | 125 mm |
| Total Length (轴承座总长度) | a | 275 mm |
| Foot Width (底座总宽度) | b | 80 mm |
| Cutout Width (上盖切口宽) | c | 30 mm |
| Housing Bed Thickness (底座厚度) | g (H12) | 44 mm |
| Center Height (中心高) | h (h12) | 80 mm |
| Housing Width (轴承座总厚度) | L | 115 mm |
| Total Height (轴承座总高度) | W | 155 mm |
| Bolt Hole Distance (安装孔距) | m | 230 mm |
| Bolt Hole Width (安装孔宽) | u | 18 mm |
| Bolt Hole Length (安装孔长) | v | 23 mm |
| Shaft Dia. at Seal 1 (密封处轴径1) | d2 (h12) | 82 mm |
| Shaft Dia. at Seal 2 (密封处轴径2) | d3 (h12) | 99 mm |
| Seal Groove Width (密封槽宽) | f1 (h13) | 6 mm |
| Internal Width for Bearing (轴承位宽) | f2 | 8.1 mm |
| Net Weight (单个净重) | Weight | 6.1 kg |
| Matched Ball Bearings (配球轴承) | Bearings | 1214, 2214 |
| Matched Roller Bearings (配滚子轴承) | Bearings | 22214 |
| Locating Rings (所需定位环) | Rings | SR125x10 (2个) / SR125x13 (1个) |
Please Note:
Standard Dimensions: All sizes in this table conform to international standards and are 100% interchangeable with major global brands (SKF, FAG, NSK, etc.).
Theoretical vs. Actual Weight: Weights listed are theoretical net weights for the cast iron housing only (excluding bearings & packaging). Due to the casting process, actual weights may have a normal tolerance of $\pm$3% to $\pm$5%.
Fixed/Floating Arrangements: Quantities for locating rings (e.g., 2 pcs of SR125×10 for SN214) are for fixed-end configurations.
Shipping Weight: For bulk wholesale container loading and ocean freight calculation, full gross weights (including wooden pallets/crates) will be detailed in your official Packing List.
- For more specifications or bulk orders, you can contact us.
