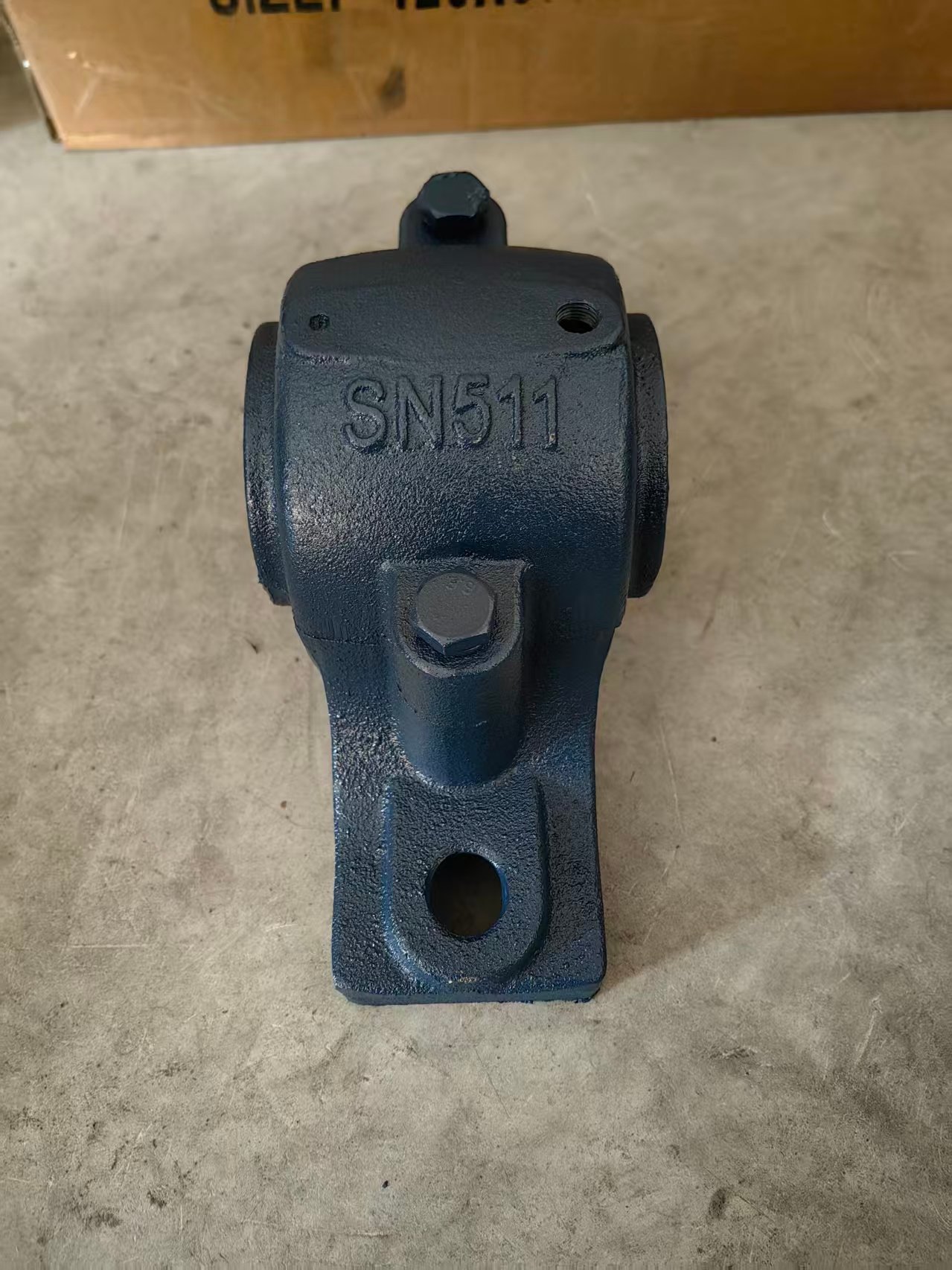

SN511 Plummer Block Bearing Housing
Description: The SN511 Plummer Block housing is an essential component for high-load industrial applications, engineered to house 100mm diameter shafts with precision. Part of the reliable SN500 series, this housing is designed to minimize vibration, ensure smooth operation, and extend the lifespan of your bearings. Ideal for heavy-duty manufacturing and mining equipment maintenance.
Key Features:
-
Perfect Fit: Precision-engineered for 100mm shaft diameter (D).
-
High Durability: Robust construction weighing 4.6 kg, built for demanding industrial environments.
-
Seamless Compatibility: Compatible with 2211K bearings and H211/HE211 adapter sleeves.
Technical Specifications:
SN511 Plummer block housing detail Specifications:
Housing material : gray cast iron or ductile iron
SN series two bolt split pillow block housing suitable for self aligning ball bearings and spherical roller bearings and adaptor sleeve mounting
Bearing No. : 1211K,2211K,22211K
Adapter Sleeve : H211,H311,HE211,HE311
Locating Ring:
2pcs of SR100X6
1pcs of SR100X8
Weight : 3.25 kg

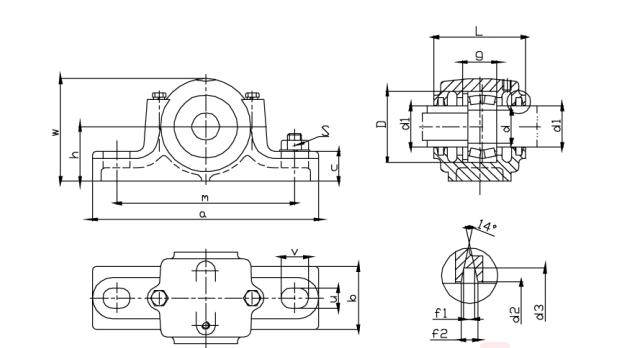

Main Dimensions:
Shaft Dia (di) : 50 mm( 2 inch)
D (H8) : 100 mm
a : 255 mm
b: 70 mm
c: 28 mm
g (H12) : 33 mm
Shaft Center Height (h) (h12) : 70 mm
L : 95 mm
W : 130 mm
Mount Hole Center To Center (m) : 210 mm
s : M16
u : 18 mm
V : 23 mm
d2 (H12) : 51.5 mm
d3 (H12) : 67 mm
Fi (H13) : 5 mm
f2 : 6.9 mm
