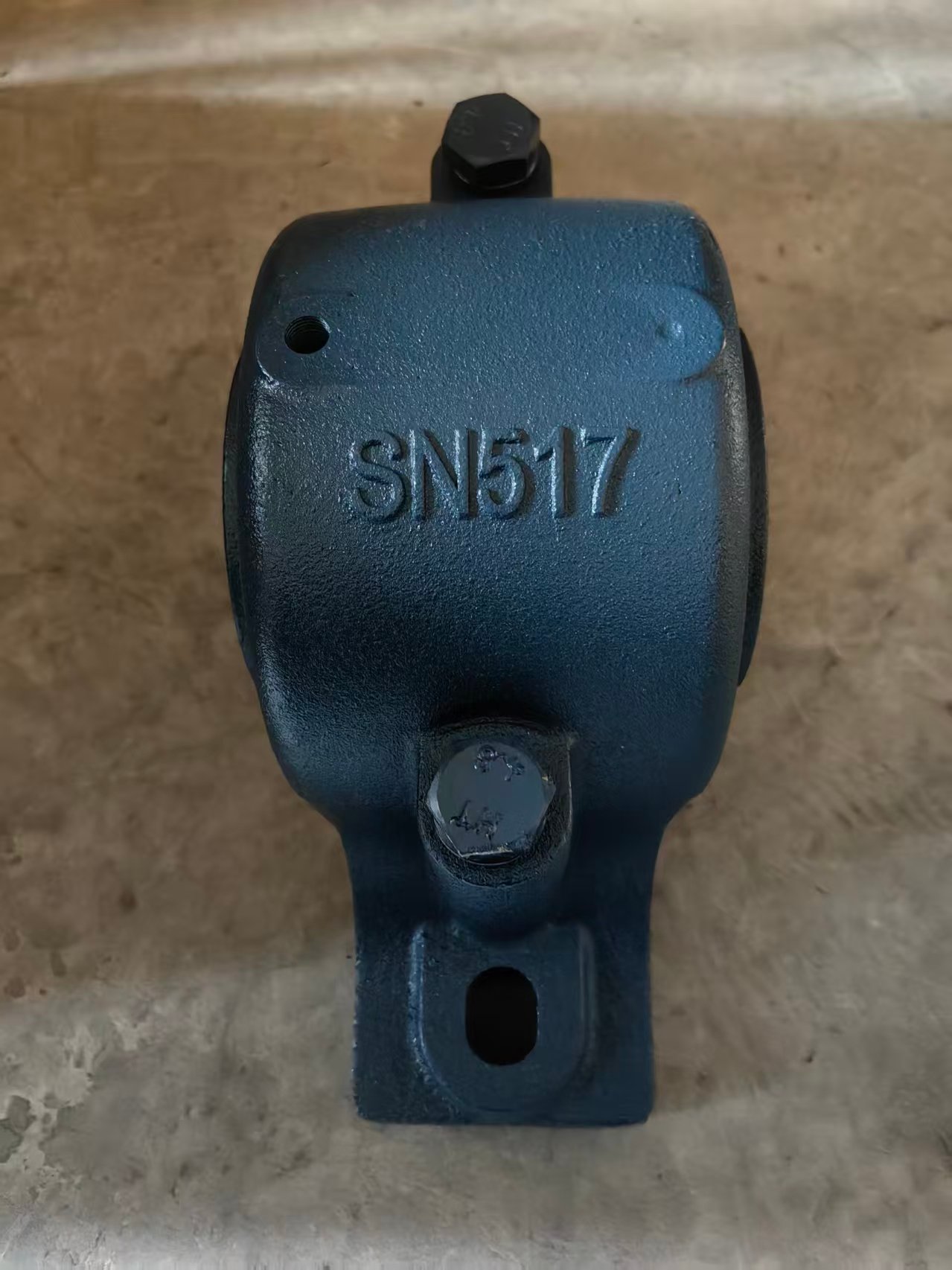

SN517 Plummer Block Housing
Description: The SN517 Plummer Block Housing is a highly durable split pillow block designed to accommodate spherical roller bearings or self-aligning ball bearings (with an adapter sleeve). Made from premium cast iron, it provides excellent rigidity and protection in heavy-duty industrial applications.
Product Features:
Easy Installation and Maintenance: The two-piece split design allows for easy mounting and dismounting of pre-assembled shafts.
Superior Sealing System: Available with multiple sealing options (such as labyrinth seals, Taconite seals, or felt seals) to prevent contamination and ensure longer bearing life.
High Load Capacity: Robust housing body absorbs heavy radial and axial loads, making it ideal for harsh environments.
Versatile Applications: Widely used in belt conveyors, crushers, mining equipment, and fans.
| Technical Item | Specifications |
| Model Number | SN517 |
| Shaft Diameter (d) | 150 mm |
| Housing Weight (wt) | 10 kg |
| Total Length (L) | 125mm |
| Center Height (h) | 90 mm |
| Body Width (W) | 185 mm |
| Bolt Hole Distance (m) | 260 mm |
| Compatible Bearings | 1217K, 2217K, 22217K, |
| Adapter Sleeves | H217, HE217, H317, HE317 |
| Material | High-Quality Cast Iron |
| Surface Treatment | Professional Blue Anti-rust Coating |
Note: The technical data and dimensions provided above are for reference only. Actual product dimensions may vary slightly depending on the specific manufacturing batch or custom requirements. Please feel free to contact our sales team to confirm the exact drawings and dimensions before placing an order.
